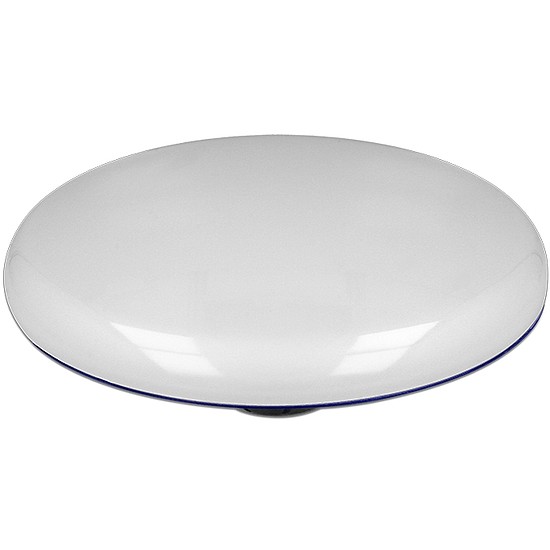

Navilock NL-60560M quad feed GNSS GLONASS GPS GALILEO BEIDOU TNC antenna outdoor (60560)

Termékleírás

Leírás This high-precision antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS, GALILEO and COMPASS / BEIDOU satellite signals at the same time. Muszaki adatok Connector: 1 x TNC jack GNSS: Frequency range: Galileo E5b, 1.20714 GHz / E6, 1.27875 GHz / L1, 1.5754200 GHz GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz / L2, 1.2429375 - 1.2516875 GHz Beidou: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz Gain: 5 dBic PVC Phase Center Variation: +/- 2 mm Axial Ratio: Connector: 1 x TNC jack GNSS: Frequency range: Galileo E5b, 1.20714 GHz / E6, 1.27875 GHz / L1, 1.5754200 GHz GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz / L2, 1.2429375 - 1.2516875 GHz Beidou: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz Gain: 5 dBic PVC Phase Center Variation: +/- 2 mm Axial Ratio: < 3 dB Beam width: 360 VSWR: 1.5 Impedance: 50 Ohm Polarisation: RHCP Antenna type: quad feed patch LNA: Frequency range: Galileo E5b, 1.20714 GHz / E6, 1.27875 GHz / L1, 1.5754200 GHz GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz / L2, 1.2429375 - 1.2516875 GHz Beidou: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz Operating voltage: 3 - 5.5V Gain: 40 dB Pass band fluctuation: +/- 1 dB Noise Figure: Connector: 1 x TNC jack GNSS: Frequency range: Galileo E5b, 1.20714 GHz / E6, 1.27875 GHz / L1, 1.5754200 GHz GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz / L2, 1.2429375 - 1.2516875 GHz Beidou: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz Gain: 5 dBic PVC Phase Center Variation: +/- 2 mm Axial Ratio: < 3 dB Beam width: 360 VSWR: 1.5 Impedance: 50 Ohm Polarisation: RHCP Antenna type: quad feed patch LNA: Frequency range: Galileo E5b, 1.20714 GHz / E6, 1.27875 GHz / L1, 1.5754200 GHz GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz / L2, 1.2429375 - 1.2516875 GHz Beidou: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz Operating voltage: 3 - 5.5V Gain: 40 dB Pass band fluctuation: +/- 1 dB Noise Figure: < 1.5 dB Current consumption: 45 mA VSWR: 2 Impedance: 50 Ohm Mounting type: Tripod mount Thread type: UNC 11, 5/8 in Housing colour: blue / white Housing material: ABS Protection category: IP66 Suitable for outdoor: yes Operating temperature: -40 C ~ 80 C Diameter: 146.5 mm Height: 62.5 mm A csomag tartalma Quad feed antenna Csomag Doboz Gyártó: Navilock Szélesség cm: 16 Hosszúság cm: 16,5 Magasság cm: 6,5
