Ár / kedvezmény
Nettó 18.118,90 Ft
Bruttó 23.011,00 Ft
Termékleírás

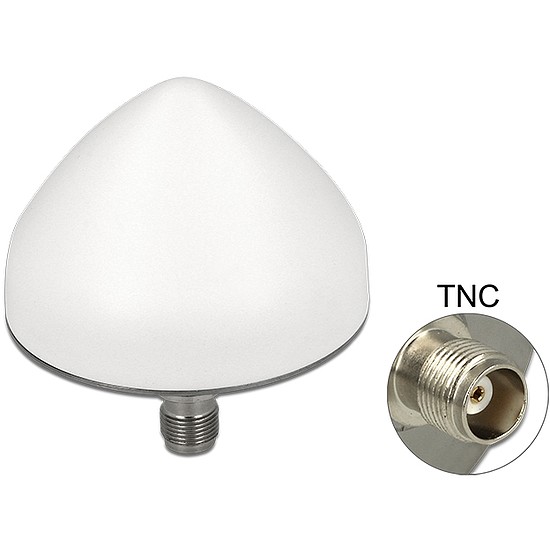

Leírás This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time. Muszaki adatok Connector: 1 x TNC jack GNSS: Frequency range: Galileo: L1 1,5754200 GHz GPS: L1, 1.5754200 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz Antenna Gain: 4 dBic VSWR: 1.5 Impedance: 50 Ohm Polarisation: RHCP LNA: Frequency range: Galileo: L1, 1,5754200 GHz GPS: L1, 1.5754200 GHz GLONASS: L1, 1.6025625 - 1.6155000 GHz Operating voltage: 2.7 V - 10.0 V Gain: 40 dB Impedance: 50 Ohm Current consumption: 25 mA VSWR: 2.0 Mounting type: screw mounting Housing colour: white Housing material: ABS Protection class: IP67 Suitable for outdoor: yes Operating temperature: -40 C ~ 85 C Diameter: 66.5 mm Height: 46 mm Thread type: M18 Surge protection: 15 kV A csomag tartalma GNSS antenna 1 x rubber seal 1 x Washer 2 x Nuts Csomag Doboz Gyártó: Navilock
