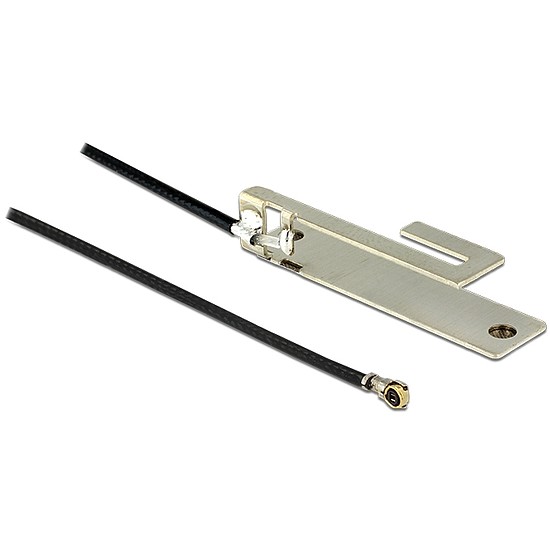

Delock WLAN Antenna MHF IV/ HSC MXHP32 802.11 b/g/n PIFA 3 dBi 250 mm internal (86183)

Termékleírás

This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors. PIFA antennas (Planar Inverted F-Shaped Antenna) are particularly very flat antennas that can be integrated directly on the PCB. Műszaki adatok: Connector: 1 x MHF 4L plug Frequency range: 2400 - 2500 MHz Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM Antenna gain: 3 dBi VSWR: 2.0 Impedance: 50 Ohm Operating temperature: -10 C ~ 55 C Colour: black Cable type: coaxial Cable type: 1.13 Cable colour: black Cable diameter: ca. 1.13 mm Cable attenuation: 3.2 dB @ 2.4 GHz per meter Smallest bending radius: 4.5 mm Dimensions (LxWxH): ca. 25 x 6 x 5 mm Length incl. connectors (L): ca. 25 cm Rendszerkövetelmények Device with one free MHF 4L port A csomag tartalma Antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 10 Hosszúság cm: 16 Magasság cm: 1
