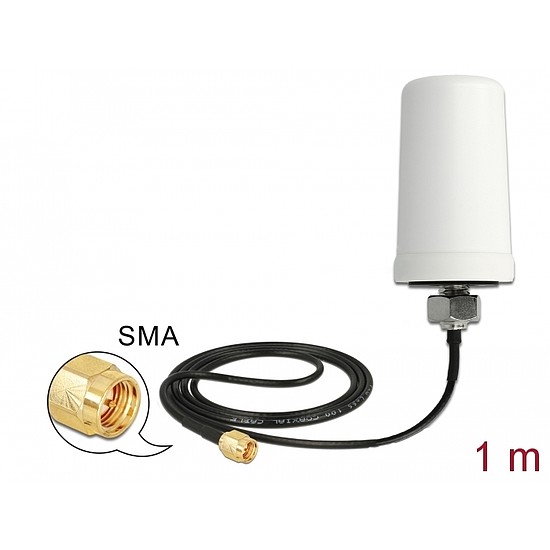

Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 - 3.0 dBi omnidirectional with connection cable (89486)

Termékleírás

This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside. Műszaki adatok: Connector: 1 x SMA plug Frequency range: 2400 - 2500 MHz 5150 - 5875 MHz Antenna gain: 1.4 dBi @ 2400 - 2500 MHz 3.0 dBi @ 5150 - 5875 MHz Impedance: 50 Ohm Polarisation: linear, vertical VSWR: 2.0 Operating temperature: - 40 C ~ 85 C Housing material: polycarbonate Protection class: IP67 Colour: white Cable type: ULA 100 Cable colour: black Cable attenuation: 1.4 dB @ 2500 MHz per meter 2.3 dB @ 5875 MHz per meter Cable diameter: ca. 2.79 mm Cable length incl. connector: ca. 1 m Dimensions (LxWxH): ca. 77 x 45 x 45 mm Rendszerkövetelmények Device with a free SMA jack A csomag tartalma WLAN antenna Csomag Poly bag Gyártó: Delock
