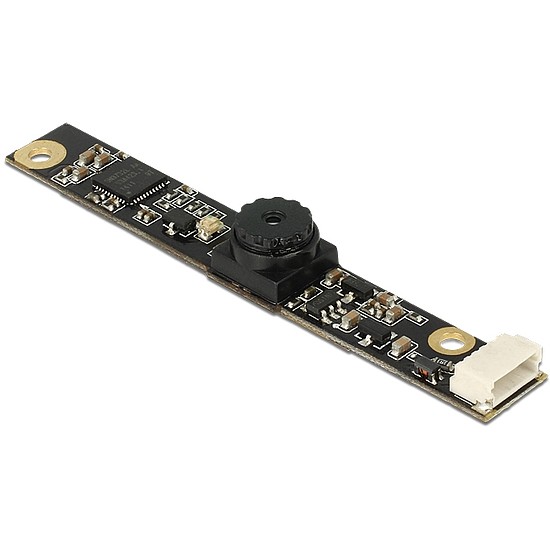

Delock USB 2.0 IR Camera Module 5.04 mega pixel 48 V5 fix focus (96371)

Termékleírás

The Delock USB 2.0 camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, embedded systems, sensors, notebooks, smartphones, tablets or instrument manufacture. You can perform with suitable IR lighting shots in the dark.The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module. Műszaki adatok: Connector: USB 2.0 5 pin jack SMT, 1 mm pitch Resolutiob: 5.04 Mega Pixel Without optical IR filter Standard SCCB interface (I2C Bus) Output support for RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422 and compression Maximum resolution: QSXGA (2592 x 1944) Automatic image control functions including - Automatic exposure control (AEC) - Automatic white balance (AWB) - Automatic band filter (ABF) - Automatic black-level calibration (ABLC) Image quality controls including colour saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and automatic 50/60 Hz luminance detection Supports scaling Power consumption: Sensor suspend: 90 mA Sensor active: 140 mA 5 mA @ 640 x 480 pixel Operating voltage: 5 V DC Operating temperature: 5 C ~ 50 C Relative humidity during operation: max. 80 % Sensor size: 1/4 inch Sensitivity: 0.6 V (lx s) Signal to noise ratio: 36 dB Dynamic range: 68 dB Fix focus: 0.3 m ~ infinite Lens: F/2.8 Frame rates: 30 fps @ HVGA, VGA, XGA, 720p, QVGA 15 fps @ UXGA, 1080p, QXGA 7 fps @ 2592 x1944 Dimension (LxWxH): ca. 60 x 8 x 6.3 mm Rendszerkövetelmények PC with UVC support Windows Vista/ 7/ 8/ 10 DirectX 9.0c and above Linux 2.6.15 and above with Video4Linux Minimum CPU P4 1.4 GHz, 512 MB RAM A csomag tartalma Camera module CD ROM with user manual Csomag Poly bag Gyártó: Delock Szélesség cm: 10 Hosszúság cm: 16 Magasság cm: 0
