Delock PCI Express Karte zu 1 x 10GBase-T LAN PoE+ RJ45 Delock (90434)

Termékleírás

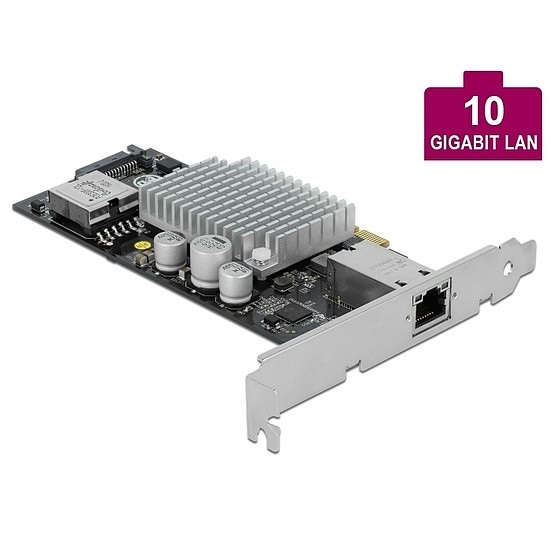

This PCI Express card by IOI offers one network port with a data transfer rate up to 10 Gbps. The RJ45 port supports Power over Ethernet according to IEEE 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. Multi-Gigabit The PCIe card supports 10GBase-T according to the standard IEEE 802.3an, 5G and 2.5G Ethernet, as well as 1000BASE-T. Műszaki adatok: IOI item number: GE10P-PCIE4XG301 Connector: external: 1 x 10 Gigabit LAN RJ45 jack with screw nuts internal: 1 x SATA 15 pin power connector 1 x PCI Express x4, V3.0 Chipset: Aquantia AQC107 Data transfer rate: Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1 Gbps NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps 10 Gigabit Ethernet up to 10 Gbps Supports Full Duplex flow control (IEEE 802.3x) Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging Supports 16k Jumbo frames Supports IEEE 802.3at Power Sourcing Equipment (PSE) Power delivery: max. 30 W total PoE power input from PCIe or SATA 15 pin power connector Rendszerkövetelmények Linux Kernel 3.12 or above Windows 7/7-64/8.1/8.1-64/10/10-64 PC with one free PCI Express x4 / x8 / x16 / x32 slot A csomag tartalma PCI Express card Driver CD User manual Csomag Doboz Gyártó: Delock
