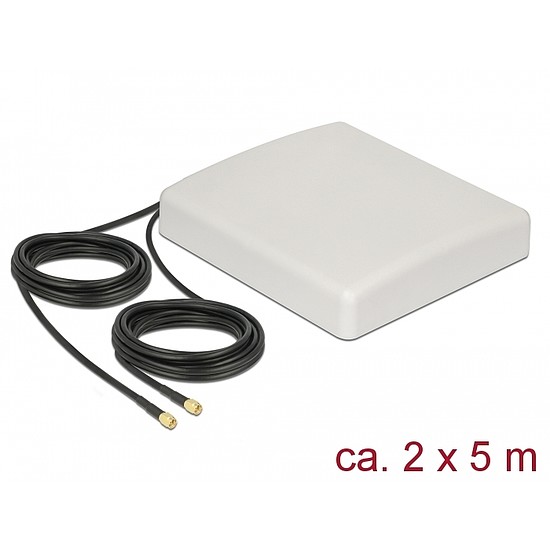

Delock LTE MIMO Antenna 2 x SMA Plug 8 dBi directional with connection cable RG-58 5 m white outdoor (89890)

Termékleírás

This MIMO antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth and LoRa 868 MHz / 915 MHz. Műszaki adatok: Connectors: 2 x SMA plug GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, LoRa 868 MHz / 915 MHz, MIMO Frequency range: 698 - 960 MHz 1710 - 2700 MHz Antenna gain: 8 dBi Impedance: 50 Ohm VSWR: 2.0 Polarisation: vertical, horizontal HBW horizontal beamwidth: 75 VBW vertical beamwidth: 65 Cable type: RG-58 Cable length incl. connectors: ca. 5 m Operating temperature: -40 C ~ 65 C Housing material: ABS Weight: ca. 0.7 kg Dimensions (LxWxH): ca. 23.7 x 22.9 x 5.0 cm Max. Pole diameter: ca. 5.5 cm Rendszerkövetelmények Device with two free SMA connectors A csomag tartalma Antenna Mounting material: Nut, washer, mounting bracket and pole mounting bracket Csomag Retail Box Gyártó: Delock Szélesség cm: 24 Hosszúság cm: 29 Magasság cm: 9,3
