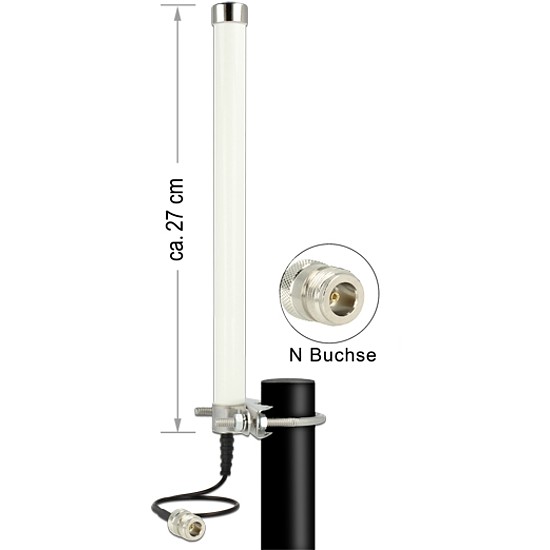

Delock LTE / GSM / UMTS Antenna N jack 2 - 6,5 dBi omnidirectional fixed pole mount white outdoor (12491)

Termékleírás

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz. Műszaki adatok: Connector: N jack Frequency range: 698 - 960 MHz 1710 - 2700 MHz ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz Antenna gain: 2.0 - 6.5 dBi Impedance: 50 Ohm Transmitting power: max. 100 W VSWR: 2.0 Operating temperature: -40 C ~ 70 C Cable category: coaxial Cable type: RG-174 Cable length: ca. 30 cm Cable diameter: ca. 2.7 mm Cable colour: black Cable loss: ca. 1.5 dB @ 1.5 GHz per meter Body: GFK, UV protected Length: ca. 27.0 cm Diameter: ca. 2.2 cm Diameter N jack: ca. 1.66 cm Rendszerkövetelmények Device with free N plug A csomag tartalma LTE Antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 13 Hosszúság cm: 38 Magasság cm: 3
