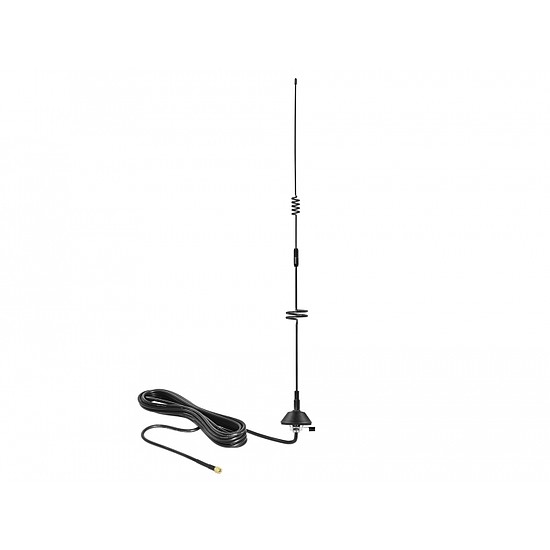

Delock LTE Antenna SMA plug 5 - 7 dBi fixed omnidirectional with mounting base and connection cable (12582)

Termékleírás

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. Műszaki adatok: Connector: 1 x SMA plug Frequency range: 698 MHz - 960 MHz 1710 MHz - 2170 MHz 2500 MHz - 2700 MHz ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN 2.4 GHz Antenna gain: 5 - 7 dBi Impedance: 50 Ohm VSWR: 1.5 Polarisation: linear, vertical Operating temperature: -20 C ~ 70 C Housing material: metal Colour: black Protection class: IPx5 Colour: black Cable: coaxial Cable type: RG-58 Cable colour: black Cable attenuation: 0.6 dB @ 1 GHz per meter Cable diameter: ca. 4.95 mm Cable length incl. connector: ca. 3 m Dimensions (LxD): ca. 56.3 x 4.5 mm Rendszerkövetelmények Device with a free SMA connector A csomag tartalma Antenna Csomag Doboz Gyártó: Delock Szélesség cm: 0 Hosszúság cm: 0 Magasság cm: 0
