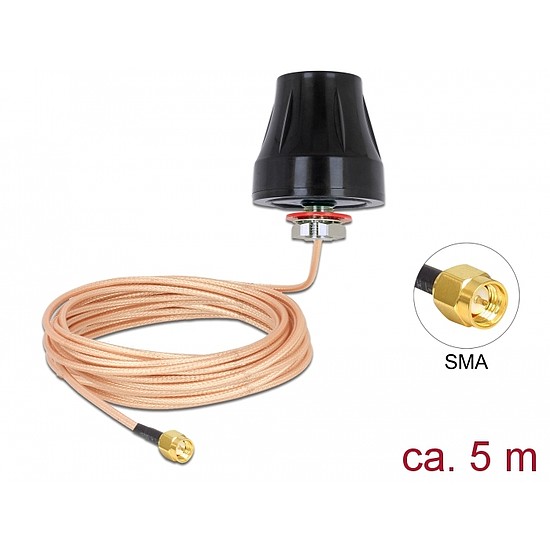

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with connection cable (RG-316U 5 m) outdoor (89899)

Termékleírás

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz. Műszaki adatok: Connector: 1 x SMA plug Frequency range: 694 - 960 MHz 1710 - 2700 MHz GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz Antenna gain: 2 dBi Impedance: 50 Ohm VSWR: 2.0 - 3.0 Polarisation: linear, vertical Screw mounting with 12 mm bore hole Operating temperature: -10 C ~ 55 C Housing material: ABS Colour: black Protection class: IP67 Cable: coaxial Cable type: RG-316U Cable colour: transparent Cable attenuation: 0.95 dB @ 1 GHz per meter Cable diameter: ca. 2.5 mm Cable length: ca. 5 m Dimensions (LxD): ca. 48 x 50 mm Rendszerkövetelmények Device with a free SMA jack A csomag tartalma Antenna Nut, washer Csomag Retail Box Gyártó: Delock
