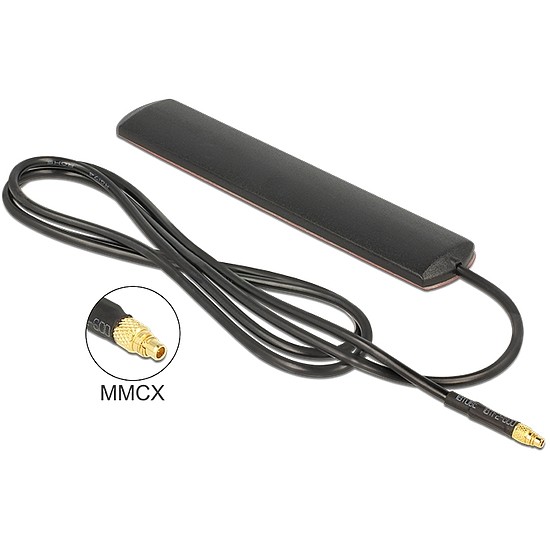

Delock LTE Antenna MMCX Plug 3 dBi omnidirectional fixed black adhesive mounting (89525)

Termékleírás

This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible. Műszaki adatok: Connector: MMCX plug LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44 Frequency range: 690 - 960, 1710 - 2700 Mhz GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave Antenna gain: 3 dBi Impedance: 50 Ohm Polarisation: vertical VSWR: 2.0. Operating temperature: -10 C ~ 55 C Housing: ABS UV resistant Colour: black Dimensions (LxWxH): ca. 115 x 22 x 5 mm Cable category: coaxial Cable type: RG-174 Cable colour: black Cable attenuation: 1,5 dB @ 1,5 GHz per meter Cable diameter: ca. 2.7 mm Cable length incl. connector: ca. 0,9 m Rendszerkövetelmények Device with free MMCX connector A csomag tartalma LTE antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 15 Hosszúság cm: 21,5 Magasság cm: 1,5
