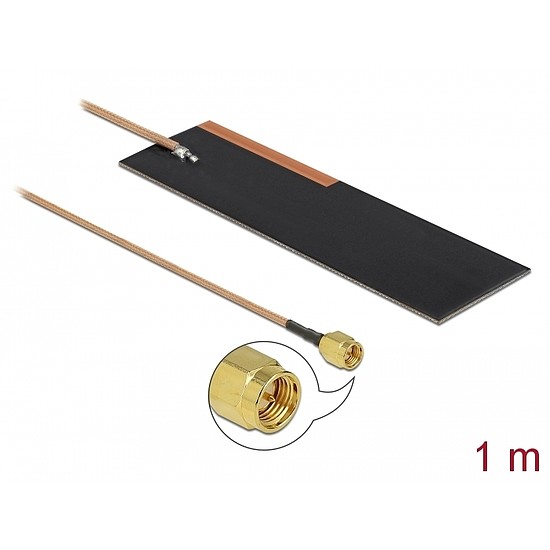

Delock LPWAN Antenna SMA plug 1 - 2 dBi RG-178 1 m PCB internal self adhesive (12620)

Termékleírás

This LPWAN antenna by Delock allows the usage of the NB-IoT bands indoors. LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption. Műszaki adatok: Connector: 1 x SMA plug Frequency range: 703 MHz - 824 MHz 832 MHz - 960 MHz ZigBee, Z-Wave, GSM, LTE, NB-IoT, LoRa, ISM Antenna gain: 1 - 2 dBi VSWR: 3.5 Impedance: 50 Ohm Mounting type: self adhesive Operating temperature: -10 C ~ 55 C Housing material: PCB Colour: black Cable type: coaxial Cable type: RG-178 Cable colour: black Cable diameter: ca. 1.8 mm Cable attenuation: 2.9 dB @ 2.4 GHz per meter Smallest bending radius: 7.5 mm Dimensions (LxW): ca. 85.0 x 25.0 mm Cable length incl. connector: ca. 1 m Rendszerkövetelmények Device with one free SMA port A csomag tartalma Antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 15 Hosszúság cm: 20,5 Magasság cm: 0
