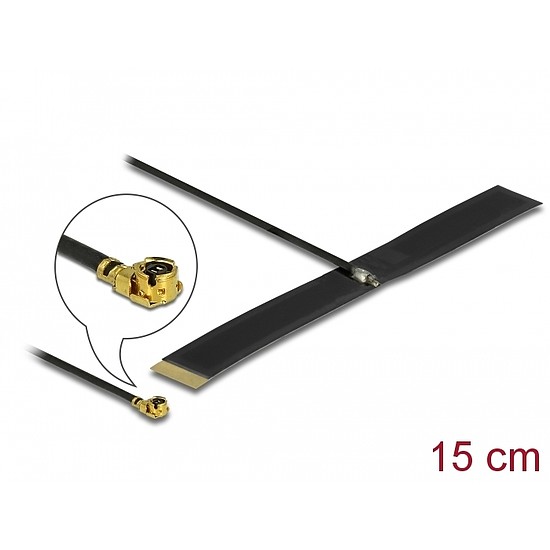

Delock LPWAN Antenna MHF I plug - 0.38 dBi 1.13 15 cm FPC internal self adhesive (12614)

Termékleírás

This LPWAN antenna by Delock allows the usage of the 863 - 928 bands inside. It is compatible to GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM and LoRa. LPWAN LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption. Műszaki adatok: Connector: 1 x MHF I plug Frequency range: 863 MHz - 928 MHz GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa Antenna gain: - 0.38 dBi VSWR: 3.0 Impedance: 50 Ohm Mounting type: self adhesive Operating temperature: -10 C ~ 55 C Housing material: FPC Colour: black Cable type: coaxial Cable type: 1.13 Cable colour: black Cable diameter: ca. 1.13 mm Cable attenuation: 3.2 dB @ 2.4 GHz per meter Smallest bending radius: 4.5 mm Dimensions (LxW): ca. 79.0 x 10.0 mm Cable length incl. connector: ca. 15 cm Rendszerkövetelmények Device with one free MHF I port A csomag tartalma Antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 10 Hosszúság cm: 16 Magasság cm: 1
