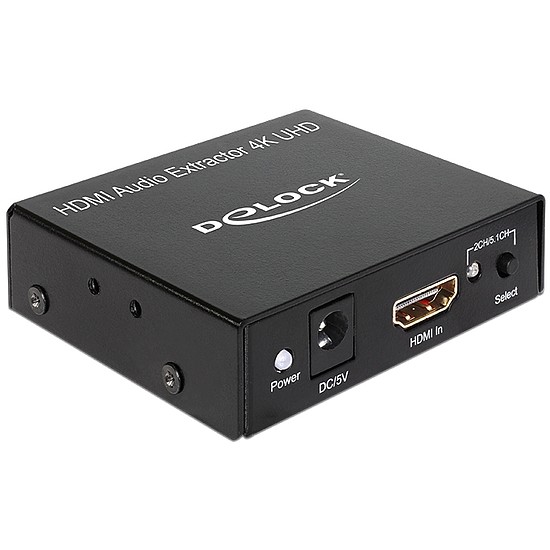

Delock HDMI Stereo / 5.1 Channel Audio Extractor 4K (62692)

Termékleírás

Description This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver. Specification Connector: Input: 1 x HDMI A 19 pin female 1 x DC Power 5 V Output: 1 x HDMI A 19 pin female 1 x 3.5 mm 3 pin Stereo jack female (Stereo Audio) 1 x TOSLINK (S/PDIF) 1 x RCA (S/PDIF) Switchable between stereo (2.0) and surround (5.1) Compatible with High Speed HDMI, 3D and HDCP 1.4 Output with HDMI repeater function Resolution up to 3840 x 2160 @ 30 Hz (8-bit), 1920 x 1080 @ 60 Hz (12-bit) Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max. Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (depending on the system and the connected devices) CEC and HDMI audio routed to the output (pass-through) Audio DAC CS4344, 24 bit / 192 kHz Robust metal housing Power consumption: max. 2.5 W Dimensions (LxWxH): 71 x 61 x 21 mm Length: power cable USB Type-A > DC ca. 50 cm Power supply specification Wall power supply Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A Output: 5 V / 1 A Ground outside, plus inside Dimensions: inside: o ca. 2.1 mm outside: o ca. 5.5 mm length: ca. 9 mm System requirements A free HDMI A female port Package content HDMI Audio Extractor Mounting brackets and screws USB power cable Power supply 5 V User manual Package Box Gyártó: Delock Szélesség cm: 15 Hosszúság cm: 15,5 Magasság cm: 5
