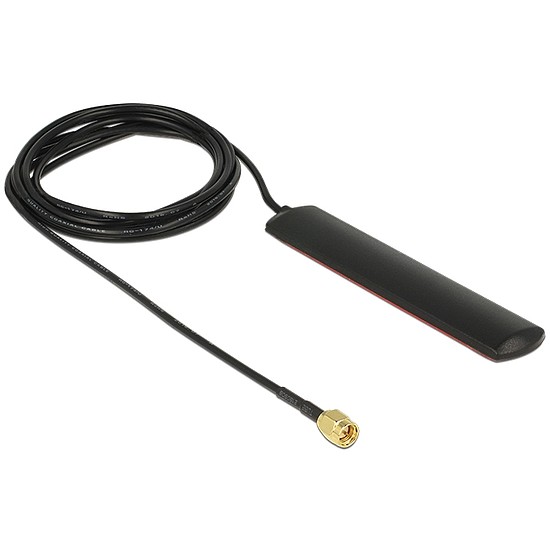

Delock GSM UMTS LTE WLAN 2.4 GHz Antenna SMA Plug 2 dBi omnidirectional adhesive mounting (89491)

Termékleírás

This GSM UMTS LTE WLAN 2.4 GHz antenna by Delock can be installed indoors and takes advantage of different bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave. Műszaki adatok: Connector: SMA plug LTE Band: 1-6/8-10/19/25/33-37/39 Frequency range: 824 - 960, 1920 - 2170, 2400 - 2500 MHz GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave Antenna gain: 2 dBi Impedance: 50 Ohm Polarisation: vertical VSWR: 2.0 Operating temperature: -40 C ~ 85 C Colour: black Dimensions (LxWxH): ca. 11.56 x 2.17 x 0,.58 cm Cable category: coaxial Cable type: RG-174 Cable colour: black Cable attenuation: 1,8 dB @ 1.8 GHz per meter Cable diameter: ca. 2.7 mm Cable length incl. connector: ca. 2 m Rendszerkövetelmények Device with free SMA connector A csomag tartalma GSM UMTS LTE WLAN 2.4 GHz antenna Csomag Poly bag Gyártó: Delock Szélesség cm: 0 Hosszúság cm: 0 Magasság cm: 0
