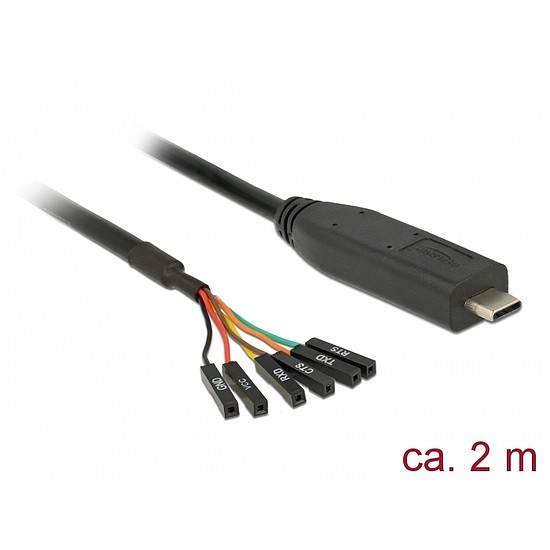

Delock Converter USB Type-C 2.0 male to LVTTL 3.3 V 6 pin pin header female separate 2.0 m (63946)

Termékleírás

This USB Type-C 2.0 to LVTTL converter by Delock can be connected directly to GPIO (General purpose input/output) connectors or UART (Universal Asynchronous Receiver/Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc. Műszaki adatok: Connectors: 1 x USB Type-C 2.0 male > 1 x LVTTL 3.3 V 6 pin pin header female separate Pitch: 2.54 mm Chipset: FTDI FT232RL Compatible to UHCI / OHCI / EHCI controller Data transfer rate up to 1 Mbps Databits: 7 or 8 Stop bits: 1 or 2 Parity: none, space, even, odd, mark Flow control: none, hardware RTS / CTS, software XON / XOFF Signals: RXD (YE), TXD (OG), CTS (BN), RTS (GN) and GND (BK), VCC (RD) Output voltage: 5 V FIFO: 128 Byte - RX 256 Byte - TX Cable type: UL AWM 2464 VW-1 Flame Test Cable gauge: 26 AWG Cable length incl. connectors: ca. 2.0 m Operating temperature: -20 C ~ 80 C Rendszerkövetelmények Windows 7/7-64/8.1/8.1-64/10/10-64/Windows Server 2012 R2/Windows Server 2016, ex Linux Kernel 2.6, ex Mac OS 10.9 PC or laptop with a free USB Type-C port A csomag tartalma USB Type-C 2.0 LVTTL cable User manual Csomag Poly bag Gyártó: Delock Szélesség cm: 0 Hosszúság cm: 0 Magasság cm: 0
