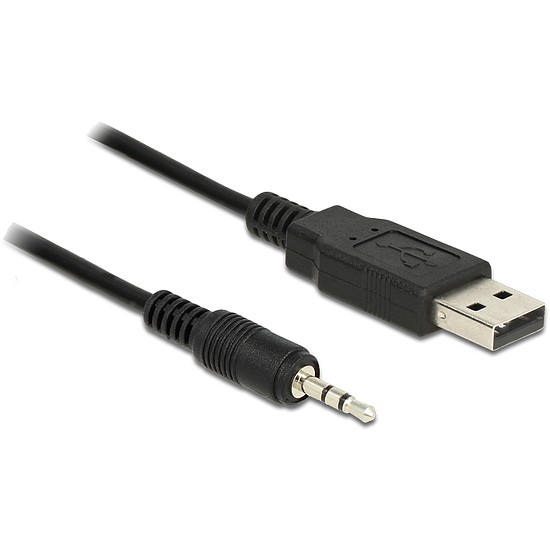

Delock Cable USB TTL male > 2.5 mm 3 pin stereo jack male 1.8 m (3.3 V ) (83789)

Termékleírás

This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It can be used for e.g. level converter, GPS-modules, interface controller, micro controller etc. Műszaki adatok: Connector: USB 2.0 type A male Serial-TTL male > 2.5 mm 3 pin stereo jack male Pin assignment: 1. GND 2. TXD 3. RXD Chipset: FTDI 232RL Cable gauge: 26 AWG Temperature range: -20 C to +80 C No-load current: 70 uA Converter: 5 V / 15 mA (VCC, GND) Compatible to UHCI / OHCI / EHCI controller LVTTL 3.3 V (data) / 4 mA or HighLevel 12 mA Data rate 300 baud - 3 Megabaud Databit: 7 or 8 Stoppbits: 1 or 2 Parity: none, space, even, odd, mark Flow control: software XON/XOFF or hardware RTS / CTS FIFO: 128 Byte RX 256 Byte TX Cable length: ca. 1.80 m Rendszerkövetelmények Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64, Windows CE 4.2, 5.0, 6.0, Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux Kernel ex 2.6 PC or laptop with a free USB type A port A csomag tartalma USB TTL cable Driver CD User manual Csomag Retail Box Gyártó: Delock
